2~49/piece
USD 399.00
50~99/piece
USD 389.00
≥100/piece
USD 379.00
Product Parameters
Gearing Arrangement | Cycloidal | Operating temperature | -25~90°C |
Outer Diameter | 104MM | Average Lifetime | 20000hrs |
Thickness | 45.5MM | IP Grade | IP65 |
Reduction ratio | 25:1 49:1 | Rated Input Speed | 3000min-1 |
Output Rated Torque | 90Nm 130NM | Maximum Input Speed | 5500min-1 |
Back drive Torque | 3 times the rated output torque | Adapted Motor | φ19×35/φ70×3/4-φ5.5-φ90 |
Allowable Radial Load | 770N | Backlash | ≤10 arcmin |
Allowable Axial Load | 770N | Weight | 1416g |
Full Load Efficiency | 80% |
Noted: Customized is accepted.

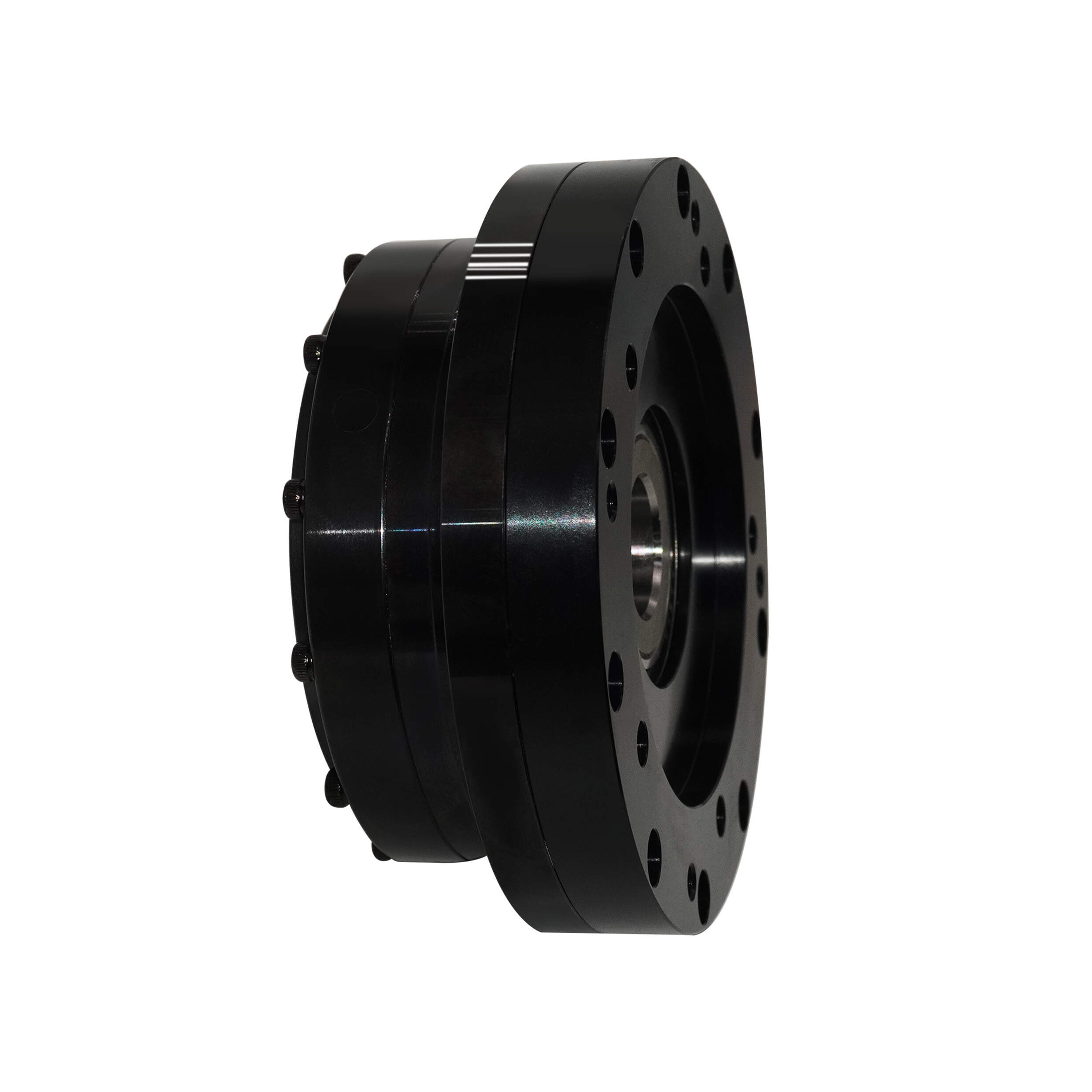

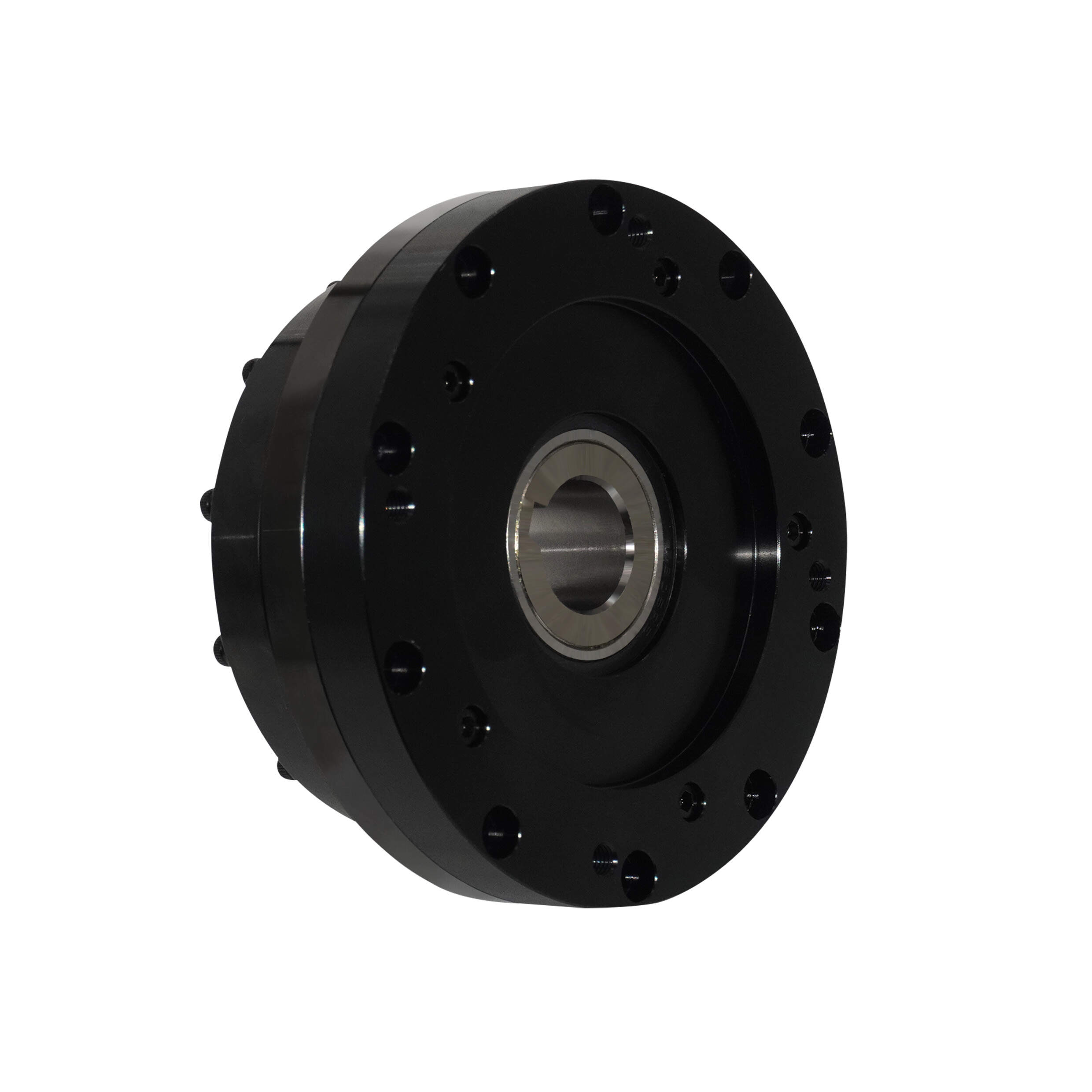

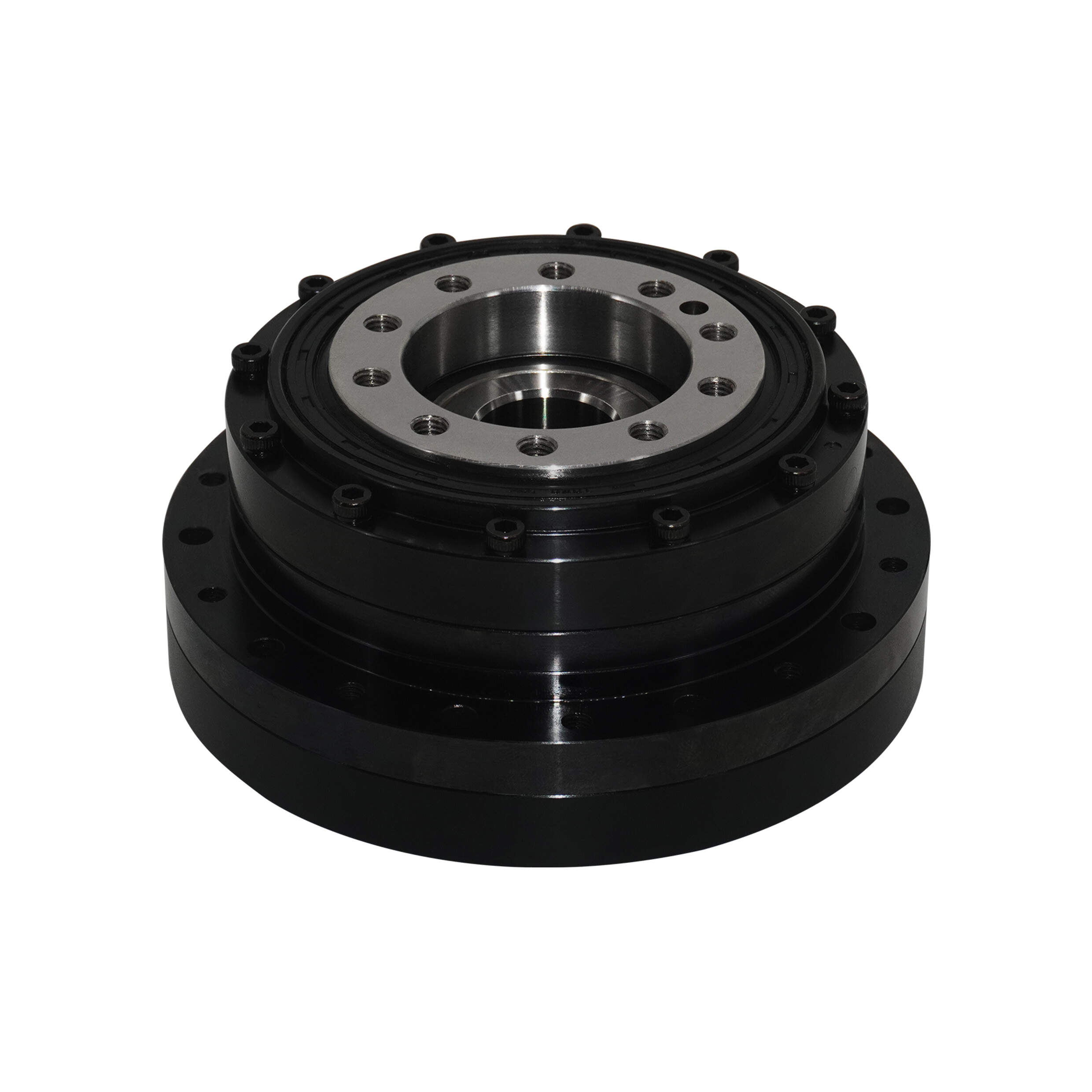

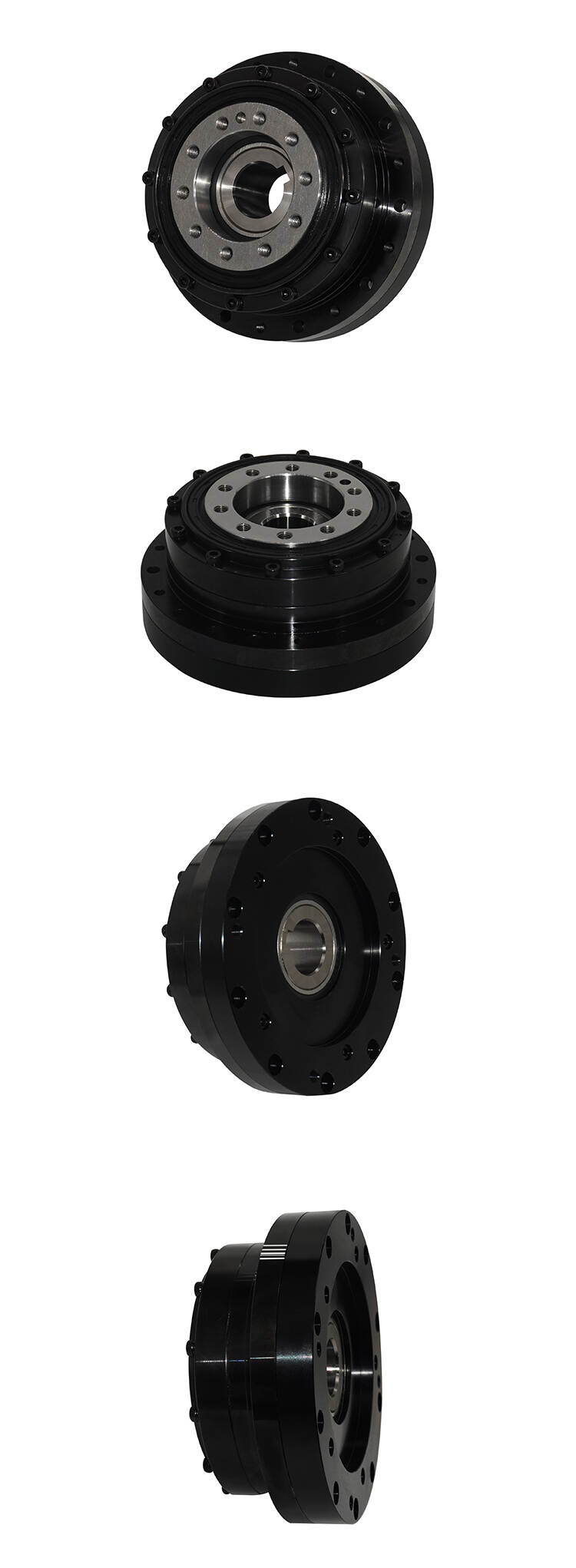

Product Photos
